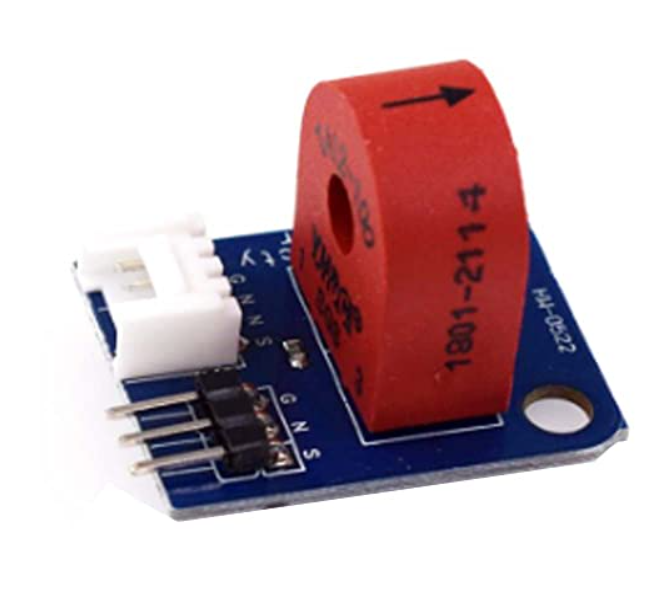

Electricity Meter TA12-100 (AC Current Sensor 5A)
EGP100.00
Description
The Electricity Meter sensor module is based on the TA12-100 current transformer which can change large alternating current into a small amplitude. You can use it to test large alternating current up to 5A. It can be used for current monitoring and management in power supply or current saving in house electricity.
Specifications
- Transformation ratio: 1000:1
- Max Input Current: 5A (AC)
- MAX Output Current: 2.5 mA
- Working Frequency: 20K
Features
- Maximum 5A input
- High accuracy
- Small size
Pinout Definition
- S: output signal DC (MAX current 2.5 ma)
- G: Ground
- N: Not connected
- Applications
- Alternating current measurement
- Device condition monitoring
