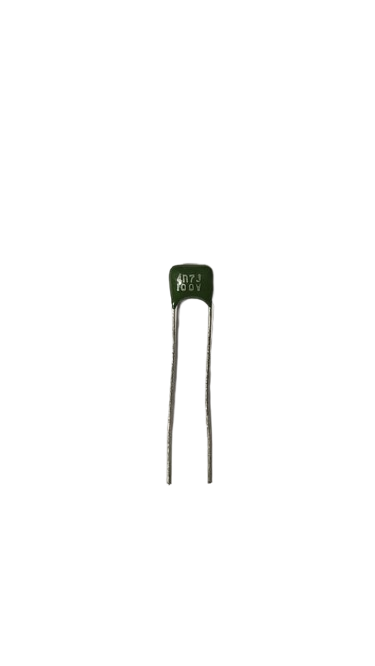

Polyester Film Capacitor 4.7nF 100V(4n7j)
EGP1.00
Description
Polyester Capacitor 4.7nF 100V
The Polyester Capacitor 4.7nF 100V is a high-performance polyester film capacitor designed for a wide range of electronic applications. It offers stable performance in demanding conditions, ensuring the reliability of circuits. With its encapsulated construction, the capacitor is durable and resistant to environmental factors, such as moisture and temperature fluctuations. The polyester film technology provides enhanced self-healing capabilities, making the capacitor suitable for long-term use.
Features
- Self-healing capability for enhanced durability.
- Compact design with low inductance.
- Encapsulated with epoxy resin for added protection.
- Stable performance across a wide temperature range.
Specifications
| Parameter | Value |
|---|---|
| Capacitance | 4.7nF |
| Tolerance | ±10% |
| Rated Voltage (DC) | 100V |
| Dielectric Type | Polyester |
| Mounting Style | Through‑hole (dipped) |
| Lead Pitch (typical) | 3.5 mm |
| Operating Temperature | Around −40 °C to +80 °C |
Applications
- Power Circuits.
- Filtering Systems.
- Energy-efficient Lighting.
- Coupling and Decoupling Applications.
- High-Temperature Systems
