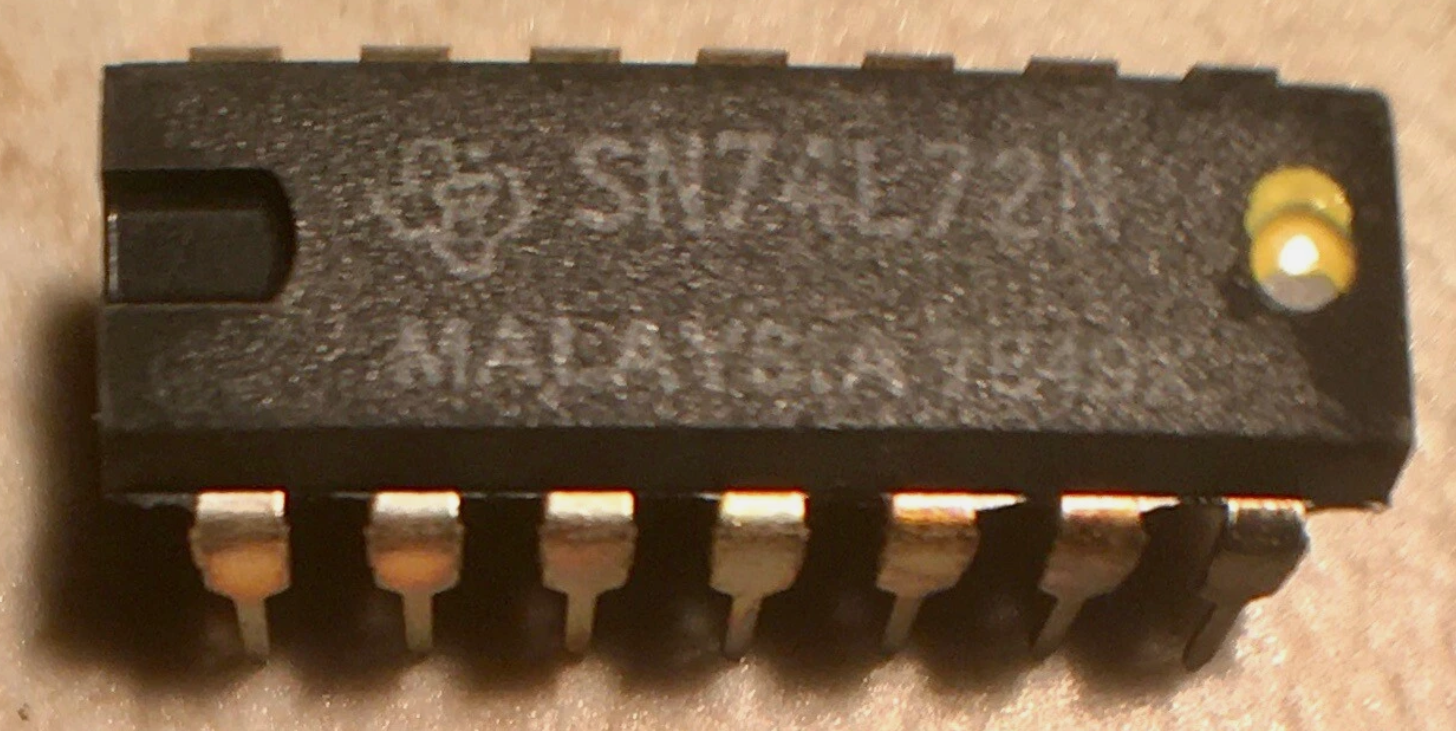

74LS72 JK Master Slave Flip Flop – 7472
EGP35.00
Description
74LS72 JK Master Slave Flip Flop – 7472
Specifications
|
TYPE
|
DESCRIPTION
|
|
|---|---|---|
|
Category
|
Integrated Circuits (ICs)
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
74LS
|
|
|
Package
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Function
|
Set(Preset) and Reset
|
|
|
Type
|
JK Type
|
|
|
Output Type
|
Complimentary
|
|
|
Number of Elements
|
2
|
|
|
Number of Bits per Element
|
1
|
|
|
Clock Frequency
|
45 MHz
|
|
|
Max Propagation Delay @ V, Max CL
|
20ns @ 5V, 15pF
|
|
|
Trigger Type
|
Negative Edge
|
|
|
Current ? Output High, Low
|
400?A, 8mA
|
|
|
Voltage ? Supply
|
4.75V ~ 5.25V
|
|
|
Current ? Quiescent (Iq)
|
6 mA
|
|
|
Operating Temperature
|
0?C ~ 70?C (TA)
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
16-PDIP
|
|
|
Package / Case
|
16-DIP (0.300?, 7.62mm)
|
|
|
Base Product Number
|
74LS112
|
