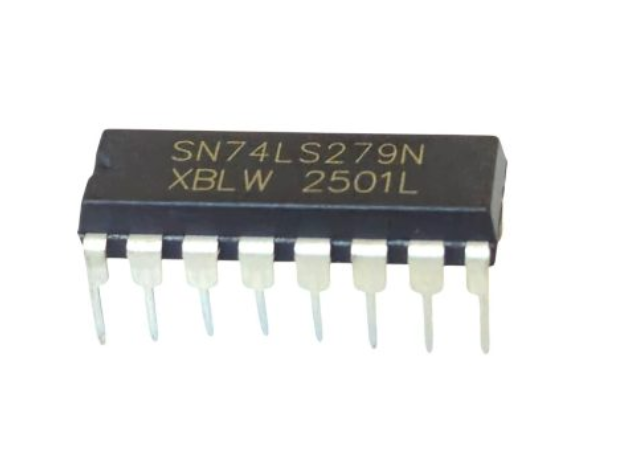

74279 IC Quadruple SR Latches
EGP24.00
Description
74279 IC Quadruple SR Latches
The 74279 is a quadruple SR latch IC manufactured by XBLW. It is designed for use in high-speed digital systems, providing efficient latch functionality in various control applications. The IC features a standard 16-pin configuration, which includes logic inputs and outputs for controlling and storing binary information. It is a versatile and reliable component that supports both high and low logic levels. The SN74LS279N is ideal for controlling devices such as memory buffers, flip-flops, and other storage devices, making it a crucial component in the design of digital systems.
Features:
- Quadruple Set-Reset (SR) latches with active high and low inputs.
- Manufactured by XBLW for high reliability and consistency.
- Fast switching times for high-speed operation.
- Designed for use in digital circuits for memory and control.
- Low power consumption for energy-efficient designs.
Specifications:
| Parameter | Value |
|---|---|
| Category | Integrated Circuits (ICs)/Logic/Latches |
| Manufacturer | XBLW |
| Package | DIP-16 |
| Logic Type | SR Latch |
| Voltage – Supply | 4.75V~5.25V |
| Series | 74LS |
| Operating Temperature | 0℃~+70℃ |
| Current – Output High(IOH) | 0.8mA |
| Current – Output Low(IOL) | 16mA |
| Number of Channels | 4 |
| Propagation Delay max | 27ns |
Pin Out:
Footprint:
Applications:
- Digital control systems.
- Memory buffers and latches.
- Flip-flops and data storage devices.
- Timing circuits and clock pulse generation.
- Industrial and commercial electronics.
Package Include:
1x 74279 IC Quadruple SR Latches
